For the past 140 years, the 16th-Century Scenic Plan of Lyon (c.1544-1550, above left) has been almost completely eclipsed by the excellent 19th-century "facsimilé" shown on the right (engraved between 1872-1876 -
326 years after the original was created!). Digital images of the facsimilé have frequently been used with insufficient mention of the fact that they are from a much-later duplication. A somewhat unfair example is an invaluable 1997 work -
Richard Cooper's great introduction to
The Entry of Henri II into Lyon: September 1548 by Maurice Scève. Cooper's decision to reproduce images taken from the 1876 facsimilé was likely a good choice for purposes of clarity.
Now the original map can be be viewed simultaneously alongside full digital compilations of the 1876 facsimilé and four other historical derivatives that preceded it in 1572, 1698, 1783 and 1847.
The 1872-76 copy is mostly faithful to the 1550 map
as it existed in 1876 (after multiple restorations). However, there are significant artistic differences, particularly in the ornamental art (view the four corners of the map for examples of this). There are also various figures (boats, people, etc.) from the original that are not reproduced in the facsimilé. Thus while the facsimile is a valuable resource, it no longer serves as an effective surrogate now that technology makes the original map accessible (though the facsimilé is still an artifact of great value in its own right).
The most compelling reason to view the original map alongside the 1872-1876 facsimilé is that the outside edges of the assembled map no longer exist. How the originals looked can only be guessed at based on derivative and contemporaneous sources.

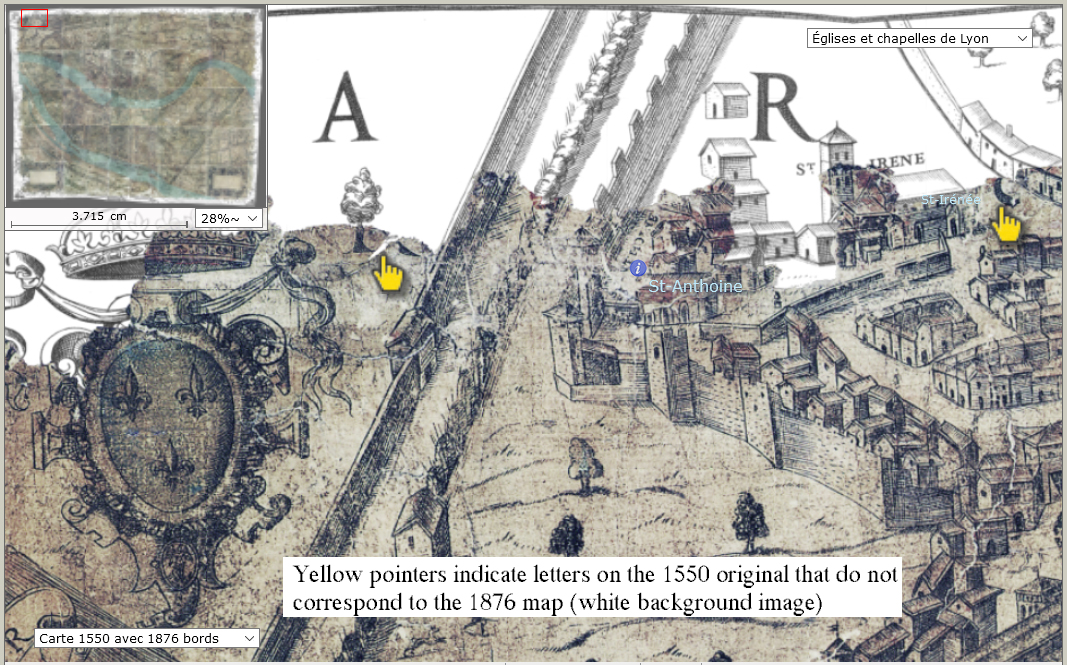

There are visual clues that lead us to doubt the faithfulness of the 19th century restorations, and consequently that of the 1876 Facsimilé which follows and builds on their examples. For
one example, at the top of the first (top-left) sheet of the 1550 Plan, traces remain of a letter (
R?) that doesn't correspond to the letter
A shown in the same area on the 1872-1876 facsimilé.
I will briefly summarize some of the "afterlife" of Le Plan Scénographique, which included restoration efforts in 1786, 1842 and 1876, as detailed in the Archives' 1990 publication
Le Plan Scénographique de Lyon vers 1550.
- The map is known to have been held by l'Académie des sciences, belles lettres et arts de Lyon after 1783, though l'Académie believed that the 1550 plan was a copy of the much-later 1698 Tardieu map included above. In 1783 Maurille-Antoine Moithey made his own copy of the original 1550 map and named it for posterity, "Plan scénographique de la ville de Lyon sous les règnes de François 1er et de Henri II." In 1786 l'academie agreed "to repair it as much as possible and transfer it into the cabinet of medals."
- The map was not actually lost but it had a reemergence in 1840, "discovered" by Lyon Archiviste de la ville Claude-Louis Grandperret in a cloth bag in a closet in the Hotel de ville (city hall), which then housed the archives. In 1842, cartographer Laurent Dignoscyo was commissioned to remount and restore the original map recreating the edges based on the deteriorating original as he found them (source). In 1847 (post-Dignoscyo), Jean-Baptiste Monfalcon sketched his own version of the map, but he based it on the 1698 Tardieu/Menestrier map, not the 1550 original. Monfalcon's map was printed in his book Histoire de la ville de Lyon.
- In 1876 one of the engravers of the facsimilé, Antoine Séon, implemented further restorations of the original map.
- In 1989 the Lyon Archives disassembled and cleaned the original map, removing a the reconstructed edges and non-original elements, making a careful record of their processes.
- In 2014, I encountered the Archive's 1990 print publication and decided to recompile the Plan Scénographique digitally - because the technology allowed it, and because I wanted to see it! The results thus far are viewable on this website, including the only digital compilations of the 25-sheet 1550 and 1876 maps currently available. I expect to make some improvements to both in the future. I described my initial digitization project and explored the history behind the map on my blogpost, Historic Map Compiling Project – Le Plan Scénographique de Lyon.
The original 25 sheets are preserved in the Municipal Archives of Lyon, and photographs of the separate sheets were published in 1990. Today, using this comparative viewer, scholars can consider for themselves how accurately the various restoration efforts, as communicated through the 1872-1876 edges and historical derivatives, might reflect the 1550 map in its original state. Note that while the 1876 facsimilé matches the giant size of the original, all the other maps are considerably smaller. Scale is always the most difficult consideration when viewing digitizations of real world objects, and
I have created a visualization showing the comparative dimensions of the various maps.
Regardless, the current renlyon.org viewing tools effectively address
a question posed by Gérard Bruyère almost 25 years ago:
On sait bien comment l'image de la tour Effel suffit à évoquer Paris ; Fourvière, Lyon ; tel monument, tel lieu. Il y a semblablement un usage métonymique du "plan scénographique" comme si Lyon, la ville, était toute entière dans son ancien plan. Sans doute, est-ce là le destin et même la raison d'être de maintes cartes, plans ou vues. Pourtant, le plan de Lyon au XVIe siècle, en totalité ou en détail, est plus que le signe de la ville, il symbolise encore son passé prestigieux (43), sa permanence historique, l'époque de sa plus grande prospérité économique, de son plus haut développement culturel, en un mot, il est l'expression de son génie particulier. Miroir ou idée de Lyon, tel qu'en lui-même l'"éternité" le change.
...Celui-ci appartient désormais à l'imaginaire des Lyonnais. Et l'on ne peut pas plus en contrôler l'interprétation que l'on ne saurait recenser, aujourd'hui, toutes ses reproductions. Nous faisions remarquer, plus haut, que la notion de fac-similé dépendait, en pratique, de la nature du document reproduit. Un autre facteur, généralement sous-estimé, intervient dans cette notion, celui de la technologie de reproduction utilisée. Quelle invention technique nous relèvera ? C'est demander aussi quelle technique de restauration et quelle herméneutique à trouver.
Pour ne pas conclure, il aura suffi de terminer sur cette question :
combien de temps s'exercera l'autorité de ce nouveau fac-similé?
- Andrew Taylor, 02/12/2016 [updated 08/20/2017]
